ASRock

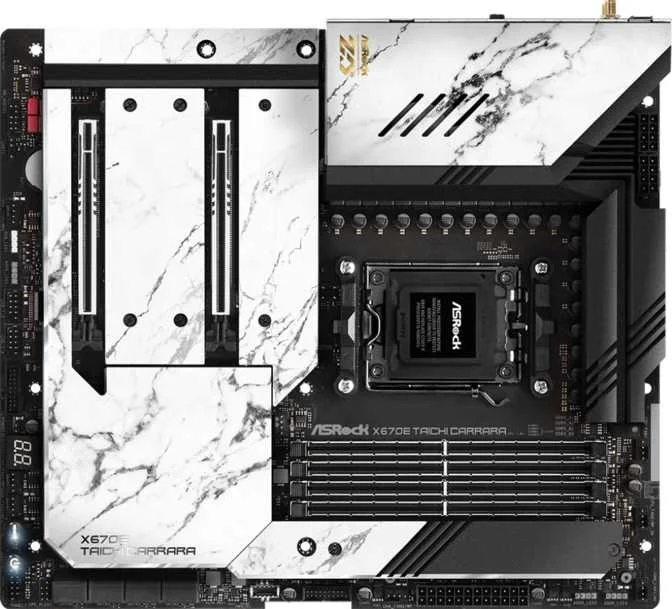

ASRock X670E Taichi Carrara
Motherboard
0100
81
✦
▋
General Info
CPU socket
am5
Chipset
x670
Form factor
atx
Release date
20220927
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 6e, wifi 6, wifi 5, wifi 4
Memory
Maximum memory amount
128 GB
RAM speed (max)
4000 MHz
Overclocked RAM speed
6600 MHz
Memory slots
4
DDR memory version
5
Memory channels
2
Ports
USB 3.2 Gen 2 ports (USB-A)
5
USB 3.2 Gen 1 ports (USB-A)
3
USB 3.2 Gen 2 ports (USB-C)
0
USB 3.2 Gen 1 ports (USB-C)
0
USB 2.0 ports
0
USB 3.2 Gen 2x2 ports
0
Connectors
USB 3.2 Gen 1 ports (through expansion)
4
USB 2.0 ports (through expansion)
0
SATA 3 connectors
8
Fan headers
8
USB 3.0 ports (through expansion)
4
M.2 sockets
4
Expansion Slots
PCIe 4.0 x16 slots
0
PCIe 5.0 x16 slots
2
PCIe 3.0 x16 slots
0
PCIe x1 slots
0
PCI slots
0
PCIe 2.0 x16 slots
0
Audio
Signal-to-Noise ratio (DAC)
130 dB
Audio channels
5.1
Has S/PDIF Out port
✔ Yes
Audio connectors
2
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✖ No
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
0
Performance
CPU
x670
