ASRock

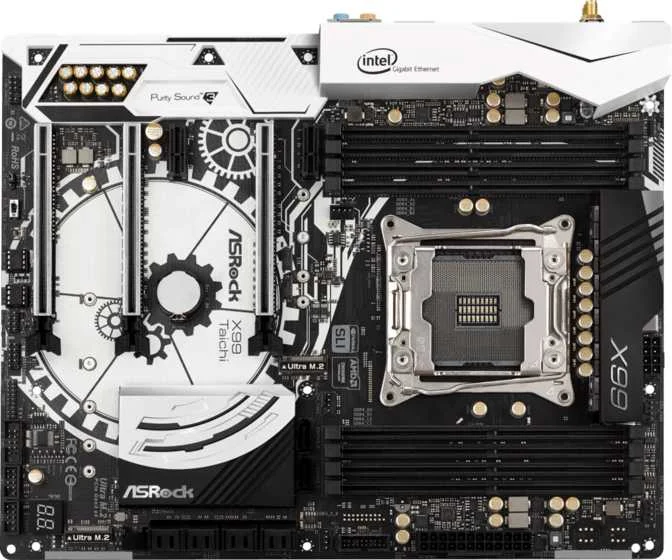

ASRock X99 Taichi
Motherboard
0100
79
✦
▋
General Info
CPU socket
lga 2011 3
Chipset
x99
Form factor
atx
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 5, wifi 4
Has Bluetooth
✔ Yes
Memory
Maximum memory amount
256 GB
RAM speed (max)
2133 MHz
Overclocked RAM speed
3300 MHz
Memory slots
8
DDR memory version
4
Memory channels
4
Ports
USB 3.2 Gen 1 ports (USB-A)
5
USB 2.0 ports
3
Has an HDMI output
✖ No
DisplayPort outputs
0
RJ45 ports
2
Has USB Type-C
✔ Yes
Connectors
USB 2.0 ports (through expansion)
4
SATA 3 connectors
10
Fan headers
5
USB 3.0 ports (through expansion)
2
M.2 sockets
2
Has TPM connector
✔ Yes
Expansion Slots
PCIe 3.0 x16 slots
3
PCIe x1 slots
2
PCI slots
0
PCIe 2.0 x16 slots
0
PCIe x4 slots
0
PCIe x8 slots
0
Audio
Signal-to-Noise ratio (DAC)
115 dB
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
6
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
0
Performance
CPU
x99
