ASRock

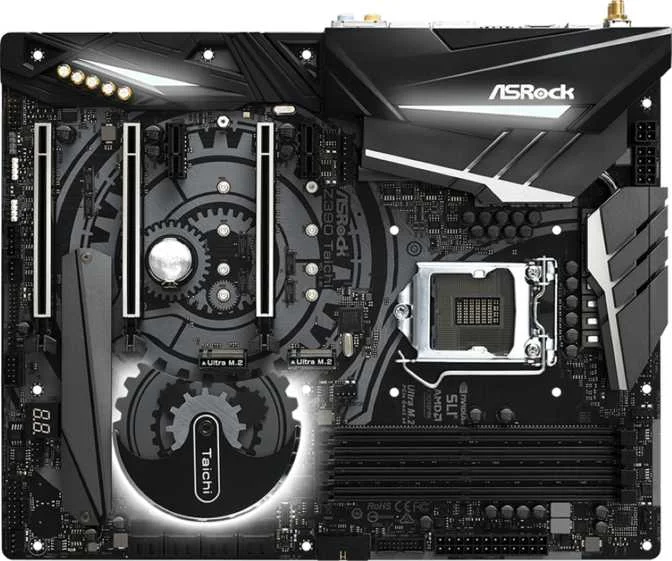

ASRock Z390 Taichi
Motherboard
0100
80
✦
▋
General Info
CPU socket
lga 1151
Chipset
z390
Form factor
atx
Release date
20191012
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 5, wifi 4
Memory
Maximum memory amount
128 GB
RAM speed (max)
2666 MHz
Overclocked RAM speed
4200 MHz
Memory slots
4
DDR memory version
4
Memory channels
2
Ports
USB 3.2 Gen 2 ports (USB-A)
3
USB 3.2 Gen 1 ports (USB-A)
4
USB 3.2 Gen 2 ports (USB-C)
1
USB 2.0 ports
0
Has an HDMI output
✔ Yes
DisplayPort outputs
1
Connectors
SATA 3 connectors
8
Fan headers
8
M.2 sockets
3
Has TPM connector
✔ Yes
U.2 sockets
0
Has mSATA connector
✖ No
Expansion Slots
PCIe 3.0 x16 slots
3
PCIe x1 slots
2
PCI slots
0
PCIe 2.0 x16 slots
0
PCIe x4 slots
0
PCIe x8 slots
0
Audio
Signal-to-Noise ratio (DAC)
120 dB
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
6
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
0
Performance
CPU
z390
