Asus

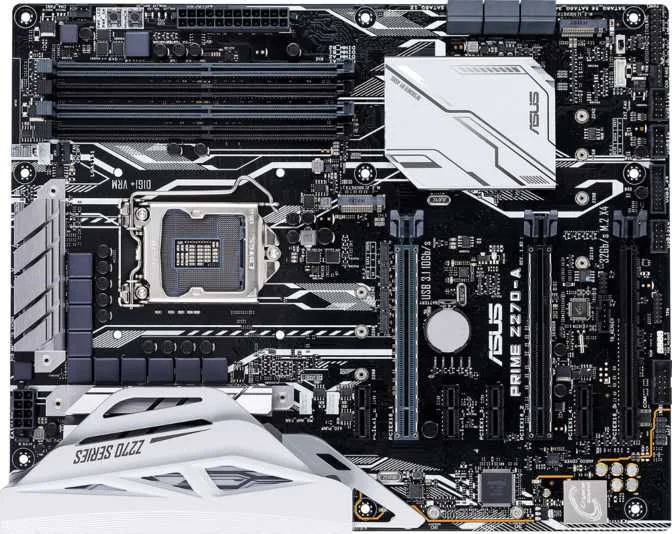

Asus Prime Z270-A
Motherboard
0100
72
✦
▋
General Info
CPU socket
lga 1151
Chipset
z270
Form factor
atx
Release date
20170501
Supports Wi-Fi
✖ No
Has Bluetooth
✖ No
Memory
Maximum memory amount
64 GB
RAM speed (max)
2133 MHz
Overclocked RAM speed
3866 MHz
Memory slots
4
DDR memory version
4
Memory channels
2
Ports
USB 3.2 Gen 2 ports (USB-A)
2
USB 3.2 Gen 1 ports (USB-A)
4
USB 2.0 ports
8
Has an HDMI output
✔ Yes
DisplayPort outputs
1
RJ45 ports
1
Connectors
USB 3.2 Gen 1 ports (through expansion)
2
USB 2.0 ports (through expansion)
6
SATA 3 connectors
6
Fan headers
5
USB 3.0 ports (through expansion)
2
Has TPM connector
✔ Yes
Expansion Slots
PCIe 4.0 x16 slots
0
PCIe 5.0 x16 slots
0
PCIe 3.0 x16 slots
3
PCIe x1 slots
4
PCI slots
0
PCIe 2.0 x16 slots
0
Audio
Signal-to-Noise ratio (DAC)
115 dB
Audio channels
8
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Performance
CPU
z270
