Asus

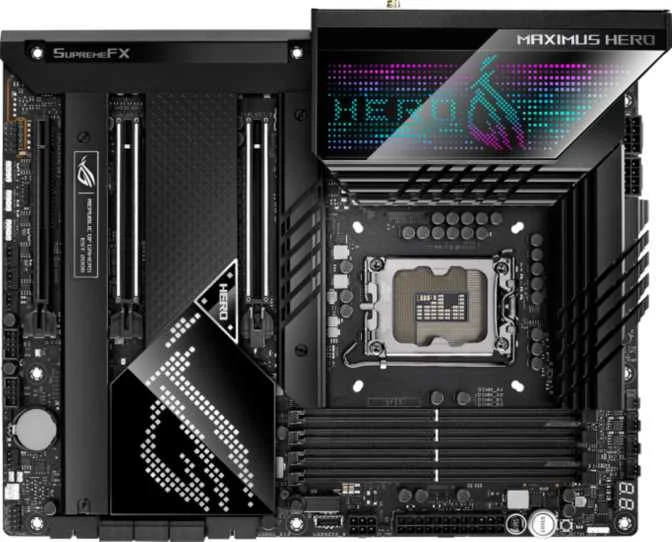

Asus ROG Maximus Z690 Hero
Motherboard
0100
93
✦
▋
General Info
CPU socket
lga 1700
Chipset
z690
Form factor
atx
Release date
20211027
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 6e, wifi 6, wifi 5, wifi 4
Memory
Maximum memory amount
128 GB
RAM speed (max)
4800 MHz
Overclocked RAM speed
6400 MHz
Memory slots
4
DDR memory version
5
Memory channels
2
Ports
USB 3.2 Gen 2 ports (USB-A)
6
USB 2.0 ports
2
Thunderbolt 4 ports
2
Has an HDMI output
✔ Yes
DisplayPort outputs
0
RJ45 ports
1
Connectors
USB 3.2 Gen 1 ports (through expansion)
4
USB 3.2 Gen 2x2 ports (through expansion)
1
USB 2.0 ports (through expansion)
4
SATA 3 connectors
6
Fan headers
6
USB 3.0 ports (through expansion)
4
Expansion Slots
PCIe 4.0 x16 slots
1
PCIe 5.0 x16 slots
2
PCIe 3.0 x16 slots
0
PCIe x1 slots
0
PCI slots
0
PCIe 2.0 x16 slots
0
Audio
Signal-to-Noise ratio (DAC)
120 dB
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Performance
CPU
z690
