Asus

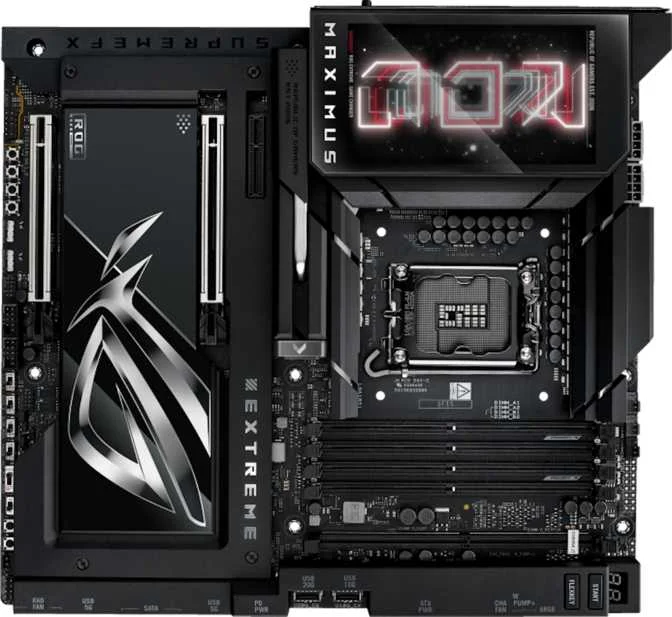

Asus ROG Maximus Z890 Extreme
Motherboard
0100
85
✦
▋
General Info
CPU socket
lga 1851
Chipset
z890
Form factor
e atx
Release date
20241010
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 4, wifi 5, wifi 6, wifi 6e, wifi 7
Memory
Maximum memory amount
192 GB
Overclocked RAM speed
8800 MHz
Memory slots
4
DDR memory version
5
Memory channels
2
Supports ECC memory
✖ No
Ports
USB 3.2 Gen 2 ports (USB-A)
5
USB 3.2 Gen 1 ports (USB-A)
0
USB 3.2 Gen 2 ports (USB-C)
2
USB 3.2 Gen 1 ports (USB-C)
0
USB 2.0 ports
0
USB 3.2 Gen 2x2 ports
1
Connectors
USB 3.2 Gen 1 ports (through expansion)
4
USB 2.0 ports (through expansion)
4
SATA 3 connectors
4
Fan headers
6
USB 3.0 ports (through expansion)
4
M.2 sockets
6
Expansion Slots
PCIe 4.0 x16 slots
0
PCIe 5.0 x16 slots
2
PCIe 3.0 x16 slots
0
PCIe x1 slots
0
PCI slots
0
PCIe 2.0 x16 slots
0
Audio
Signal-to-Noise ratio (DAC)
120 dB
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
2
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Performance
CPU
z890
