Asus

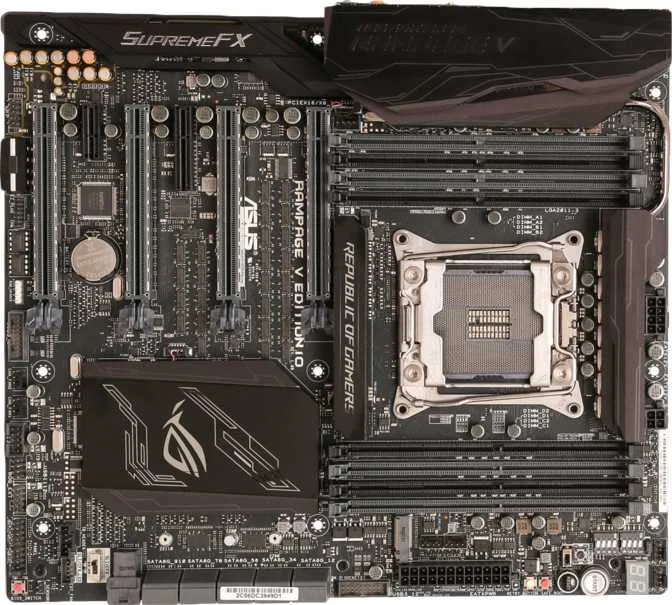

Asus ROG Rampage V Edition 10
Motherboard
0100
74
✦
▋
General Info
Form factor
atx
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 4, wifi 5
Has Bluetooth
✔ Yes
Bluetooth version
4
Easy to overclock
✔ Yes
Memory
Maximum memory amount
128 GB
RAM speed (max)
2133 MHz
Overclocked RAM speed
3333 MHz
Memory slots
8
DDR memory version
4
Memory channels
4
Ports
USB 3.2 Gen 2 ports (USB-A)
2
USB 3.2 Gen 1 ports (USB-A)
4
USB 3.2 Gen 2 ports (USB-C)
2
USB 3.2 Gen 1 ports (USB-C)
0
USB 2.0 ports
2
USB 3.2 Gen 2x2 ports
0
Connectors
USB 2.0 ports (through expansion)
4
SATA 3 connectors
10
Fan headers
7
USB 3.0 ports (through expansion)
4
Has TPM connector
✔ Yes
Has mSATA connector
✖ No
Expansion Slots
PCIe 5.0 x16 slots
0
PCIe 3.0 x16 slots
4
PCIe x1 slots
1
PCI slots
0
PCIe 2.0 x16 slots
0
PCIe x4 slots
0
Audio
Signal-to-Noise ratio (DAC)
115 dB
Audio channels
8
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
0
