Asus

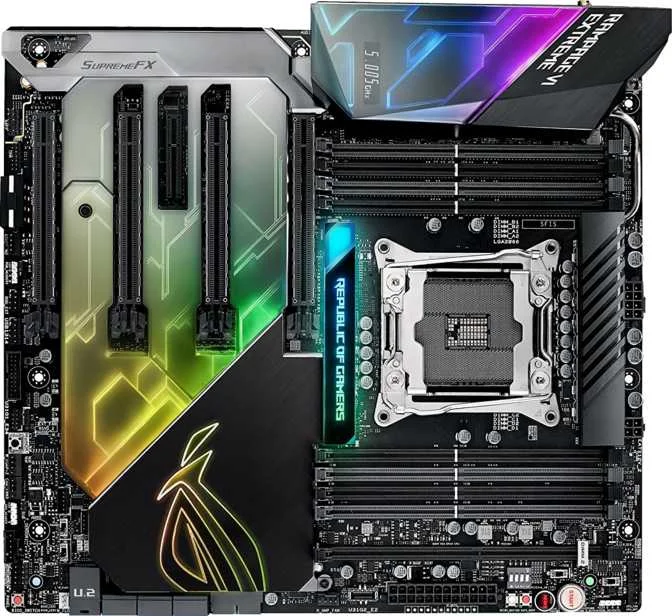

Asus ROG Rampage VI Extreme
Motherboard
0100
80
✦
▋
General Info
CPU socket
lga 2066
Form factor
atx
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 5, wifi 4
Has Bluetooth
✔ Yes
Bluetooth version
4.1
Memory
Maximum memory amount
128 GB
RAM speed (max)
2133 MHz
Overclocked RAM speed
4200 MHz
Memory slots
8
Memory channels
4
Supports ECC memory
✖ No
Ports
USB 3.2 Gen 2 ports (USB-A)
2
USB 3.2 Gen 1 ports (USB-A)
8
USB 2.0 ports
0
Has an HDMI output
✖ No
DisplayPort outputs
0
RJ45 ports
2
Connectors
USB 2.0 ports (through expansion)
2
SATA 3 connectors
6
Fan headers
7
USB 3.0 ports (through expansion)
4
M.2 sockets
3
Has TPM connector
✔ Yes
Expansion Slots
PCIe 4.0 x16 slots
0
PCIe 3.0 x16 slots
4
PCIe x1 slots
0
PCI slots
0
PCIe 2.0 x16 slots
0
PCIe x4 slots
0
Audio
Signal-to-Noise ratio (DAC)
120 dB
Audio channels
8
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
0
