Asus

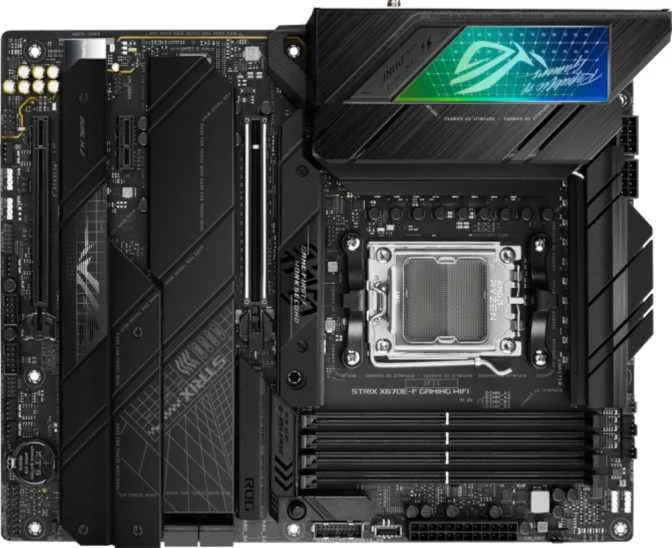

Asus ROG Strix X670E-F Gaming WiFi
Motherboard
0100
85
✦
▋
General Info
CPU socket
am5
Chipset
x670
Form factor
atx
Release date
20220927
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 6e, wifi 6, wifi 5, wifi 4
Memory
Maximum memory amount
128 GB
RAM speed (max)
5200 MHz
Overclocked RAM speed
6400 MHz
Memory slots
4
DDR memory version
5
Memory channels
2
Ports
USB 3.2 Gen 2 ports (USB-A)
7
USB 3.2 Gen 2 ports (USB-C)
2
USB 2.0 ports
2
USB 3.2 Gen 2x2 ports
1
Has an HDMI output
✔ Yes
DisplayPort outputs
1
Connectors
USB 3.2 Gen 1 ports (through expansion)
2
USB 2.0 ports (through expansion)
4
SATA 3 connectors
4
Fan headers
7
M.2 sockets
4
Has TPM connector
✖ No
Expansion Slots
PCIe 4.0 x16 slots
1
PCIe 5.0 x16 slots
1
PCIe 3.0 x16 slots
0
PCIe x1 slots
1
PCI slots
0
PCIe 2.0 x16 slots
0
Audio
Signal-to-Noise ratio (DAC)
120 dB
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✖ No
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
0
Performance
CPU
x670
