Asus

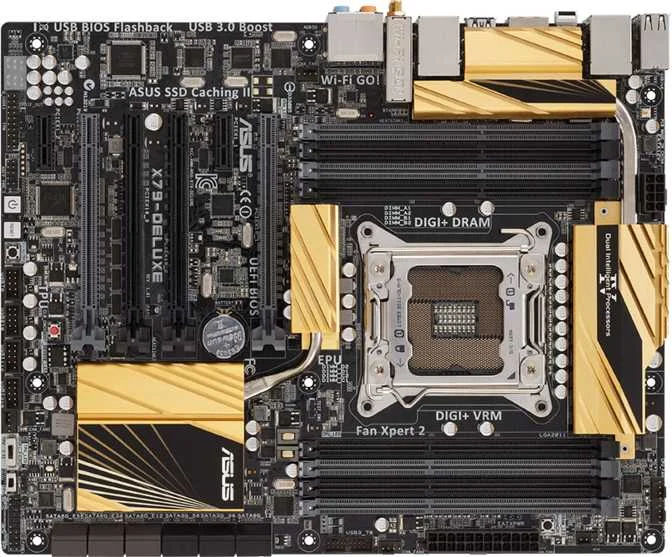

Asus X79 Deluxe
Motherboard
0100
72
✦
▋
General Info
Form factor
atx
Supports Wi-Fi
✖ No
Has Bluetooth
✔ Yes
Bluetooth version
4
Easy to overclock
✖ No
Has RGB lighting
✖ No
Memory
Maximum memory amount
64 GB
RAM speed (max)
1866 MHz
Overclocked RAM speed
2800 MHz
Memory slots
8
Memory channels
4
Supports ECC memory
✖ No
Ports
USB 3.2 Gen 1 ports (USB-A)
6
USB 2.0 ports
4
Has an HDMI output
✖ No
RJ45 ports
2
Has USB Type-C
✖ No
ESATA ports
2
Connectors
USB 2.0 ports (through expansion)
8
SATA 3 connectors
8
Fan headers
6
USB 3.0 ports (through expansion)
8
Has TPM connector
✔ Yes
Has mSATA connector
✖ No
Expansion Slots
PCIe 3.0 x16 slots
4
PCIe x1 slots
2
PCI slots
0
PCIe 2.0 x16 slots
0
PCIe x4 slots
0
PCIe x8 slots
0
Audio
Signal-to-Noise ratio (DAC)
115 dB
Audio channels
8
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
