Asus

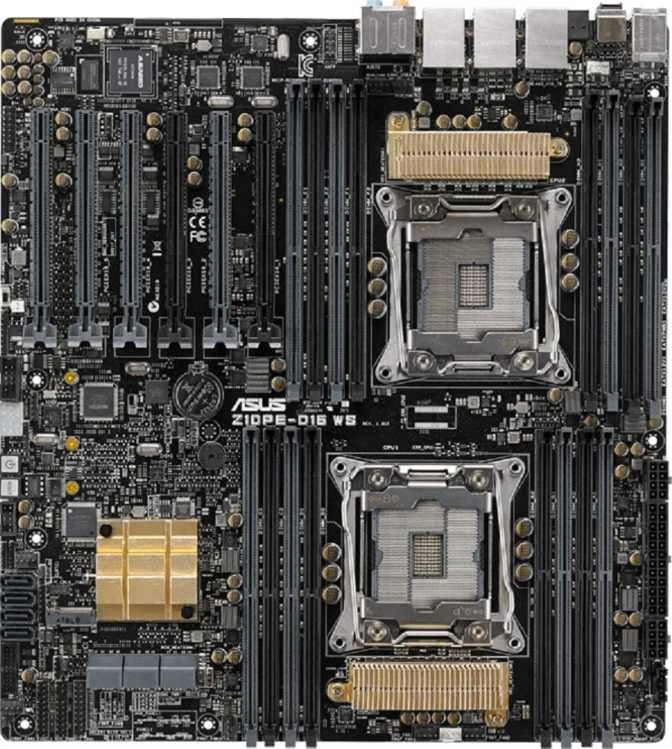

Asus Z10PE-D16 WS
Motherboard
0100
83
✦
▋
General Info
CPU socket
lga 2011 3
Form factor
atx
Supports Wi-Fi
✖ No
Has Bluetooth
✖ No
Easy to overclock
✖ No
Has RGB lighting
✖ No
Memory
Maximum memory amount
1024 GB
RAM speed (max)
2400 MHz
Memory slots
16
Memory channels
4
Supports ECC memory
✔ Yes
Ports
USB 3.2 Gen 1 ports (USB-A)
4
USB 2.0 ports
4
Has an HDMI output
✖ No
DisplayPort outputs
0
RJ45 ports
2
Has USB Type-C
✖ No
Connectors
USB 2.0 ports (through expansion)
2
SATA 3 connectors
10
Fan headers
9
USB 3.0 ports (through expansion)
2
Has TPM connector
✔ Yes
Has mSATA connector
✖ No
Expansion Slots
PCIe 3.0 x16 slots
6
Audio
Signal-to-Noise ratio (DAC)
112 dB
Audio channels
8
Has S/PDIF Out port
✔ Yes
Audio connectors
1
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
0
