Asus

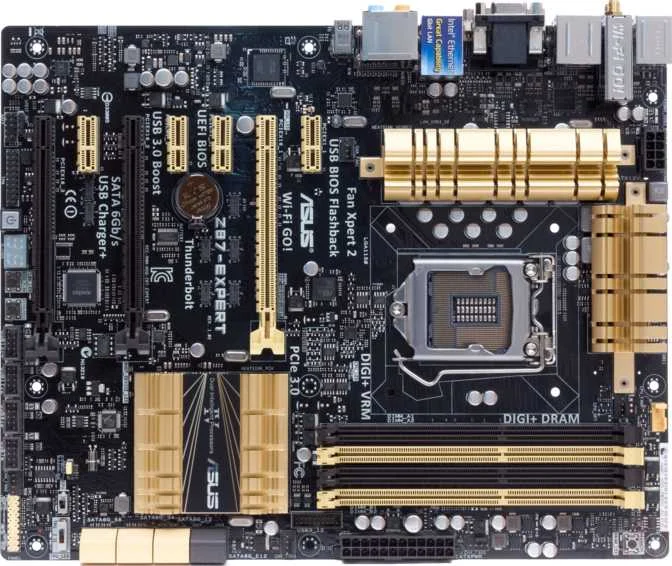

Asus Z87 Expert
Motherboard
0100
78
✦
▋
General Info
CPU socket
lga 1150
Chipset
z87
Form factor
atx
Supports Wi-Fi
✔ Yes
Has Bluetooth
✔ Yes
Bluetooth version
4
Memory
Maximum memory amount
32 GB
RAM speed (max)
1600 MHz
Overclocked RAM speed
3000 MHz
Memory slots
4
Memory channels
2
Supports ECC memory
✖ No
Ports
USB 3.2 Gen 1 ports (USB-A)
6
Has an HDMI output
✔ Yes
RJ45 ports
1
Has USB Type-C
✖ No
DVI outputs
1
Has a VGA connector
✔ Yes
Connectors
USB 2.0 ports (through expansion)
8
SATA 3 connectors
8
Fan headers
6
USB 3.0 ports (through expansion)
2
Has TPM connector
✔ Yes
Has mSATA connector
✖ No
Expansion Slots
PCIe 3.0 x16 slots
3
PCIe x1 slots
4
PCI slots
0
PCIe 2.0 x16 slots
0
PCIe x4 slots
0
PCIe x8 slots
0
Audio
Signal-to-Noise ratio (DAC)
115 dB
Audio channels
8
Has S/PDIF Out port
✔ Yes
Audio connectors
6
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
1
Performance
CPU
z87
