Gigabyte

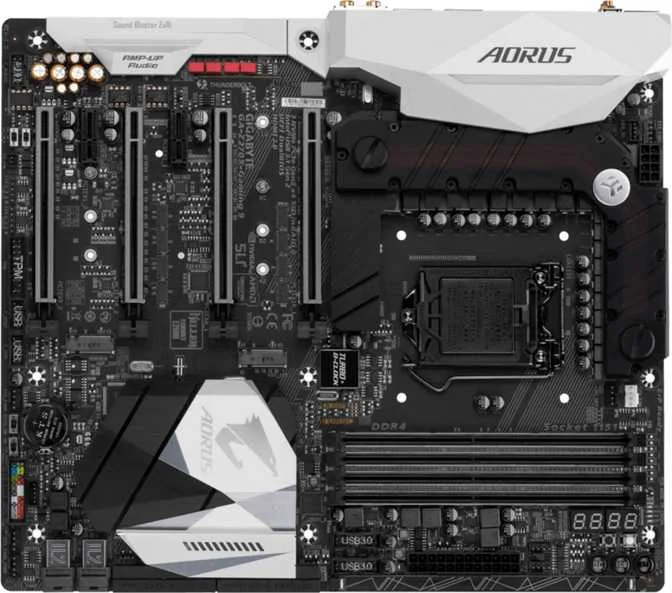

Gigabyte Aorus GA-Z270X Gaming 9
Motherboard
0100
74
✦
▋
General Info
CPU socket
lga 1151
Chipset
z270
Form factor
atx
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 5, wifi 4
Has Bluetooth
✔ Yes
Memory
Maximum memory amount
64 GB
RAM speed (max)
2400 MHz
Overclocked RAM speed
4133 MHz
Memory slots
4
DDR memory version
4
Memory channels
2
Ports
USB 3.2 Gen 1 ports (USB-A)
6
USB 2.0 ports
0
Has an HDMI output
✔ Yes
DisplayPort outputs
1
RJ45 ports
2
Has USB Type-C
✖ No
Connectors
SATA 3 connectors
8
Fan headers
8
M.2 sockets
2
Has TPM connector
✔ Yes
U.2 sockets
2
Has mSATA connector
✖ No
Expansion Slots
PCIe 5.0 x16 slots
0
PCIe 3.0 x16 slots
4
PCIe x1 slots
2
PCI slots
0
PCIe 2.0 x16 slots
0
PCIe x4 slots
0
Audio
Audio channels
5.1
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
1
Performance
CPU
z270
