Gigabyte

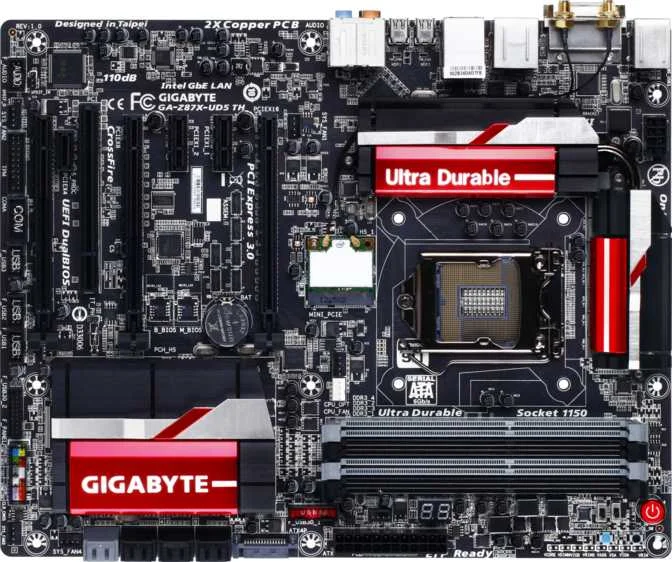

Gigabyte GA-Z87X-UD5 TH
Motherboard
0100
84
✦
▋
General Info
CPU socket
lga 1150
Chipset
z87
Form factor
atx
Supports Wi-Fi
✔ Yes
Has Bluetooth
✔ Yes
Bluetooth version
4
Memory
Maximum memory amount
32 GB
RAM speed (max)
1866 MHz
Overclocked RAM speed
3000 MHz
Memory slots
4
DDR memory version
3
Memory channels
2
Ports
USB 3.2 Gen 1 ports (USB-A)
8
USB 2.0 ports
0
Has an HDMI output
✔ Yes
DisplayPort outputs
0
RJ45 ports
1
Has USB Type-C
✖ No
Connectors
USB 2.0 ports (through expansion)
8
SATA 3 connectors
8
Fan headers
7
USB 3.0 ports (through expansion)
8
Has TPM connector
✔ Yes
Has mSATA connector
✖ No
Expansion Slots
PCIe 3.0 x16 slots
1
PCIe x1 slots
2
PCI slots
1
PCIe 2.0 x16 slots
0
PCIe x4 slots
1
PCIe x8 slots
1
Audio
Signal-to-Noise ratio (DAC)
110 dB
Audio channels
8
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
2
Performance
CPU
z87
