Gigabyte

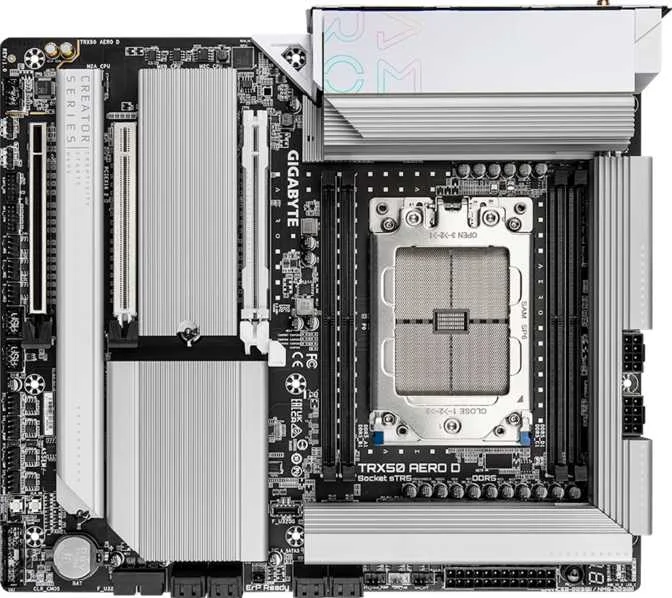

Gigabyte TRX50 Aero D
Motherboard
0100
88
✦
▋
General Info
Form factor
e atx
Release date
20231026
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 4, wifi 5, wifi 6, wifi 6e, wifi 7
Has Bluetooth
✔ Yes
Bluetooth version
5.3
Memory
Maximum memory amount
1000 GB
RAM speed (max)
5200 MHz
Overclocked RAM speed
7800 MHz
Memory slots
4
DDR memory version
5
Memory channels
4
Ports
USB 3.2 Gen 2 ports (USB-A)
4
USB 3.2 Gen 1 ports (USB-A)
4
USB 3.2 Gen 2 ports (USB-C)
0
USB 3.2 Gen 1 ports (USB-C)
0
USB 2.0 ports
0
USB 3.2 Gen 2x2 ports
0
Connectors
USB 3.2 Gen 1 ports (through expansion)
2
USB 2.0 ports (through expansion)
4
SATA 3 connectors
8
Fan headers
10
USB 3.0 ports (through expansion)
2
M.2 sockets
4
Expansion Slots
PCIe 4.0 x16 slots
1
PCIe 5.0 x16 slots
2
PCIe 3.0 x16 slots
0
PCIe x1 slots
0
PCI slots
0
PCIe 2.0 x16 slots
0
Audio
Audio channels
8
Has S/PDIF Out port
✖ No
Audio connectors
2
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✖ No
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
