Gigabyte

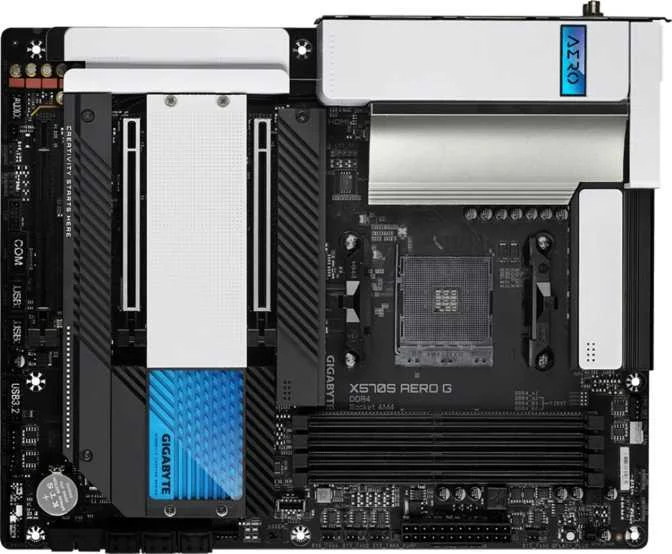

Gigabyte X570S Aero G
Motherboard
0100
78
★★★★★
5.0
✦
▋
General Info
CPU socket
am4
Chipset
x570
Form factor
atx
Release date
20210617
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 6, wifi 5, wifi 4
Memory
Maximum memory amount
128 GB
RAM speed (max)
2933 MHz
Overclocked RAM speed
5400 MHz
Memory slots
4
DDR memory version
4
Memory channels
2
Ports
USB 3.2 Gen 2 ports (USB-A)
5
USB 3.2 Gen 1 ports (USB-A)
3
USB 2.0 ports
2
Has an HDMI output
✔ Yes
DisplayPort outputs
1
RJ45 ports
1
Connectors
USB 2.0 ports (through expansion)
4
SATA 3 connectors
6
Fan headers
8
USB 3.0 ports (through expansion)
4
M.2 sockets
4
Has TPM connector
✔ Yes
Expansion Slots
PCIe 4.0 x16 slots
2
PCIe x1 slots
0
PCI slots
0
PCIe 2.0 x16 slots
0
PCIe x4 slots
1
PCIe x8 slots
0
Audio
Signal-to-Noise ratio (DAC)
120 dB
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✖ No
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
0
Performance
CPU
x570
