Gigabyte

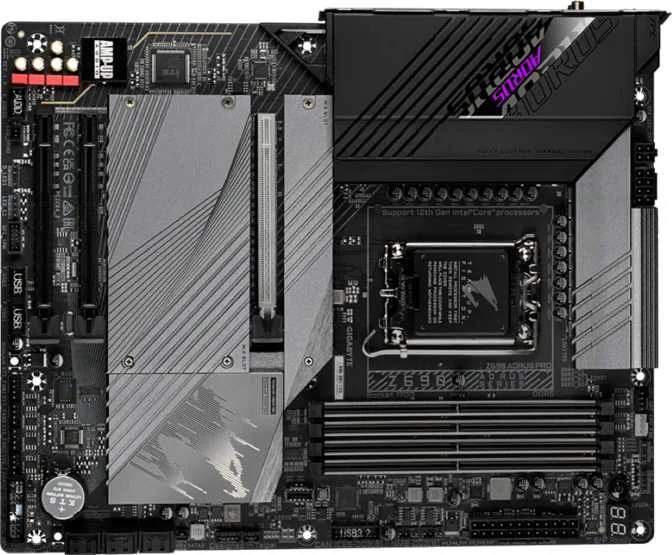

Gigabyte Z690 Aorus Pro
Motherboard
0100
76
✦
▋
General Info
CPU socket
lga 1700
Chipset
z690
Form factor
atx
Release date
20211027
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 6, wifi 5, wifi 4
Memory
Maximum memory amount
128 GB
RAM speed (max)
4800 MHz
Overclocked RAM speed
6200 MHz
Memory slots
4
DDR memory version
5
Memory channels
2
Ports
USB 3.2 Gen 2 ports (USB-A)
4
USB 3.2 Gen 1 ports (USB-A)
4
USB 3.2 Gen 2 ports (USB-C)
0
USB 3.2 Gen 1 ports (USB-C)
0
USB 2.0 ports
4
USB 3.2 Gen 2x2 ports
1
Connectors
USB 3.2 Gen 1 ports (through expansion)
2
USB 2.0 ports (through expansion)
4
SATA 3 connectors
6
Fan headers
8
USB 3.0 ports (through expansion)
2
M.2 sockets
4
Expansion Slots
PCIe 5.0 x16 slots
1
PCIe x1 slots
0
PCI slots
0
PCIe 2.0 x16 slots
0
PCIe x4 slots
0
PCIe x8 slots
0
Audio
Signal-to-Noise ratio (DAC)
120 dB
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
2
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
0
Performance
CPU
z690
