Gigabyte

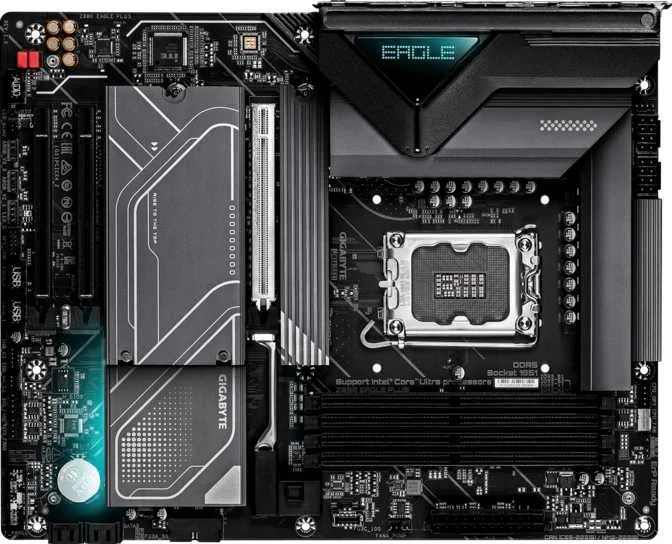

Gigabyte Z890 Eagle Plus
Motherboard
0100
72
✦
▋
General Info
CPU socket
lga 1851
Chipset
z890
Form factor
atx
Release date
20260311
Supports Wi-Fi
✖ No
Has Bluetooth
✖ No
Memory
Maximum memory amount
256 GB
Overclocked RAM speed
9466 MHz
Memory slots
4
DDR memory version
5
Memory channels
2
Supports ECC memory
✖ No
Ports
USB 3.2 Gen 2 ports (USB-A)
2
USB 3.2 Gen 1 ports (USB-A)
3
USB 3.2 Gen 2 ports (USB-C)
0
USB 3.2 Gen 1 ports (USB-C)
0
USB 2.0 ports
4
USB 3.2 Gen 2x2 ports
0
Connectors
USB 3.2 Gen 1 ports (through expansion)
2
USB 3.2 Gen 2 ports (through expansion)
0
USB 3.2 Gen 2x2 ports (through expansion)
0
USB-C 3.2 Gen 2 ports (through expansion)
1
USB 2.0 ports (through expansion)
4
SATA 3 connectors
4
Expansion Slots
PCIe 4.0 x16 slots
0
PCIe 5.0 x16 slots
1
PCIe 3.0 x16 slots
0
PCIe x1 slots
0
PCI slots
0
PCIe 2.0 x16 slots
0
Audio
Signal-to-Noise ratio (DAC)
120 dB
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
2
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Performance
CPU
z890
