MSI

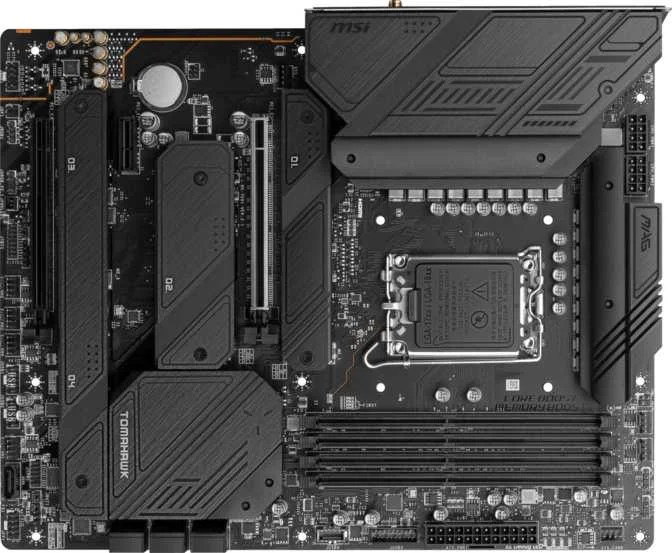

MSI MAG Z790 Tomahawk WiFi DDR4
Motherboard
0100
75
✦
▋
General Info
CPU socket
lga 1700
Chipset
z790
Form factor
atx
Release date
20220927
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 6e, wifi 6, wifi 5, wifi 4
Memory
Maximum memory amount
128 GB
RAM speed (max)
3200 MHz
Overclocked RAM speed
5333 MHz
Memory slots
4
DDR memory version
4
Memory channels
2
Ports
USB 3.2 Gen 2 ports (USB-A)
4
USB 3.2 Gen 1 ports (USB-A)
4
USB 3.2 Gen 2 ports (USB-C)
1
USB 3.2 Gen 1 ports (USB-C)
0
USB 2.0 ports
0
USB 3.2 Gen 2x2 ports
1
Connectors
USB 3.2 Gen 1 ports (through expansion)
2
USB 2.0 ports (through expansion)
4
SATA 3 connectors
7
Fan headers
8
M.2 sockets
4
Has TPM connector
✔ Yes
Expansion Slots
PCIe 4.0 x16 slots
1
PCIe 5.0 x16 slots
1
PCIe 3.0 x16 slots
0
PCIe x1 slots
1
PCI slots
0
PCIe 2.0 x16 slots
0
Audio
Signal-to-Noise ratio (DAC)
120 dB
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
0
Performance
CPU
z790
