MSI

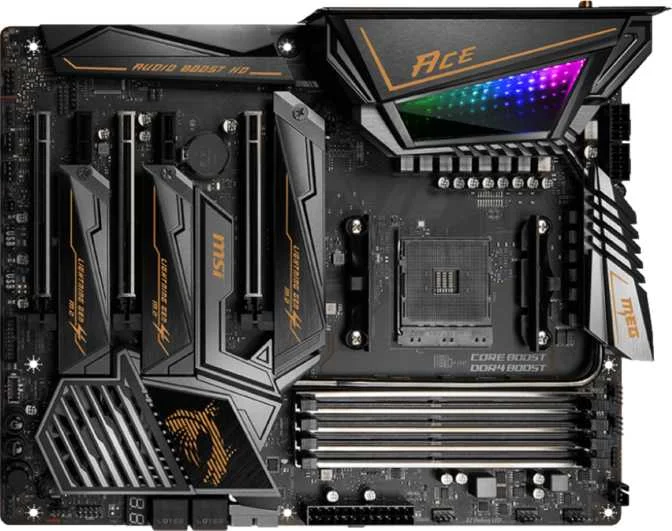

MSI MEG X570 Ace
Motherboard
0100
73
✦
▋
General Info
CPU socket
am4
Chipset
x570
Form factor
atx
Release date
20190707
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 6, wifi 5, wifi 4
Memory
Maximum memory amount
128 GB
RAM speed (max)
5000 MHz
Overclocked RAM speed
5000 MHz
Memory slots
4
DDR memory version
4
Memory channels
2
Ports
USB 3.2 Gen 2 ports (USB-A)
4
USB 3.2 Gen 1 ports (USB-A)
2
USB 2.0 ports
2
Has an HDMI output
✖ No
DisplayPort outputs
0
RJ45 ports
2
Connectors
USB 2.0 ports (through expansion)
4
SATA 3 connectors
4
Fan headers
6
USB 3.0 ports (through expansion)
4
M.2 sockets
3
Has TPM connector
✔ Yes
Expansion Slots
PCIe 4.0 x16 slots
3
PCIe 5.0 x16 slots
0
PCIe x1 slots
2
PCI slots
0
PCIe 2.0 x16 slots
0
PCIe x4 slots
0
Audio
Signal-to-Noise ratio (DAC)
120 dB
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✖ No
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
0
Performance
CPU
x570
