MSI

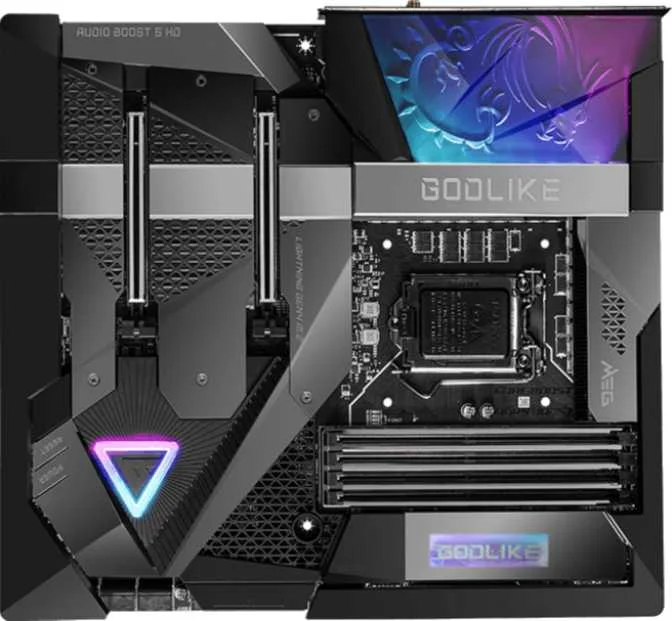

MSI MEG Z590 Godlike
Motherboard
0100
78
✦
▋
General Info
CPU socket
lga 1200
Chipset
z590
Form factor
atx
Release date
20210210
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 6, wifi 5, wifi 4
Memory
Maximum memory amount
128 GB
RAM speed (max)
2933 MHz
Overclocked RAM speed
5600 MHz
Memory slots
4
DDR memory version
4
Memory channels
2
Ports
USB 3.2 Gen 2 ports (USB-A)
2
USB 3.2 Gen 1 ports (USB-A)
6
USB 2.0 ports
0
Has an HDMI output
✖ No
DisplayPort outputs
0
RJ45 ports
2
Connectors
USB 2.0 ports (through expansion)
4
SATA 3 connectors
6
Fan headers
10
USB 3.0 ports (through expansion)
4
M.2 sockets
4
Has TPM connector
✔ Yes
Expansion Slots
PCIe 4.0 x16 slots
2
PCIe 5.0 x16 slots
0
PCIe 3.0 x16 slots
1
PCIe x1 slots
0
PCI slots
0
PCIe 2.0 x16 slots
0
Audio
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
2
Performance
CPU
z590
