MSI

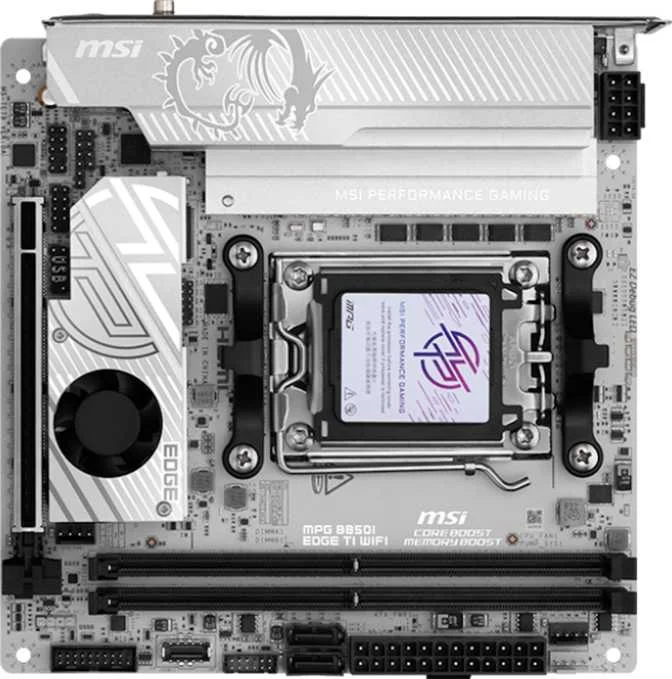

MSI MPG B850I Edge TI Wi-Fi
Motherboard
0100
73
✦
▋
General Info
CPU socket
am5
Chipset
b850
Form factor
mini itx
Release date
20250520
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 4, wifi 5, wifi 6, wifi 6e, wifi 7
Memory
Maximum memory amount
128 GB
RAM speed (max)
5600 MHz
Overclocked RAM speed
10000 MHz
Memory slots
2
DDR memory version
5
Memory channels
2
Ports
USB 3.2 Gen 2 ports (USB-A)
3
USB 3.2 Gen 1 ports (USB-A)
2
USB 3.2 Gen 2 ports (USB-C)
0
USB 3.2 Gen 1 ports (USB-C)
0
USB 2.0 ports
0
USB 3.2 Gen 2x2 ports
1
Connectors
USB 3.2 Gen 1 ports (through expansion)
2
USB-C 3.2 Gen 2 ports (through expansion)
1
USB 2.0 ports (through expansion)
2
SATA 3 connectors
2
Fan headers
3
USB 3.0 ports (through expansion)
2
Expansion Slots
PCIe 4.0 x16 slots
0
PCIe 5.0 x16 slots
1
PCIe 3.0 x16 slots
0
PCIe x1 slots
0
PCI slots
0
PCIe 2.0 x16 slots
0
Audio
Signal-to-Noise ratio (DAC)
120 dB
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
2
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✖ No
Supports RAID 5
✖ No
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Performance
CPU
b850
