MSI

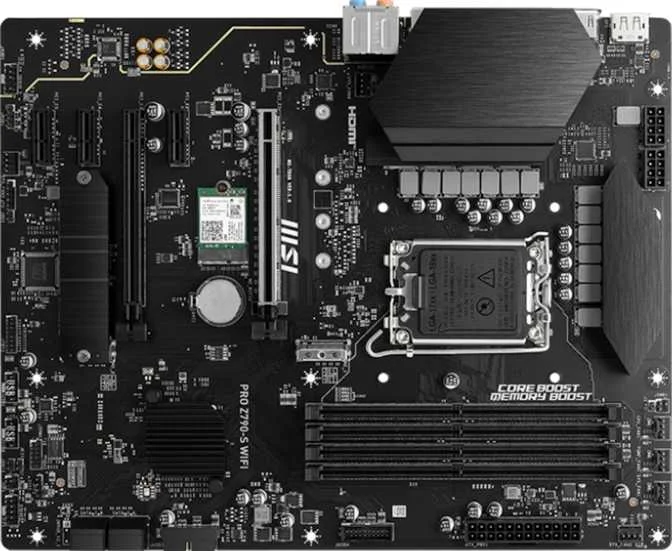

MSI Pro Z790-S WiFi
Motherboard
0100
72
✦
▋
General Info
CPU socket
lga 1700
Chipset
z790
Form factor
atx
Release date
20230908
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 4, wifi 5, wifi 6, wifi 6e
Memory
Maximum memory amount
192 GB
RAM speed (max)
5600 MHz
Overclocked RAM speed
6600 MHz
Memory slots
4
DDR memory version
5
Memory channels
2
Ports
USB 3.2 Gen 2 ports (USB-A)
0
USB 3.2 Gen 1 ports (USB-A)
4
USB 3.2 Gen 2 ports (USB-C)
0
USB 3.2 Gen 1 ports (USB-C)
0
USB 2.0 ports
2
USB 3.2 Gen 2x2 ports
1
Connectors
USB 3.2 Gen 1 ports (through expansion)
4
USB 2.0 ports (through expansion)
4
SATA 3 connectors
4
Fan headers
6
USB 3.0 ports (through expansion)
4
M.2 sockets
2
Expansion Slots
PCIe 4.0 x16 slots
0
PCIe 5.0 x16 slots
1
PCIe 3.0 x16 slots
1
PCIe x1 slots
3
PCI slots
0
PCIe 2.0 x16 slots
0
Audio
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Performance
CPU
z790
