MSI

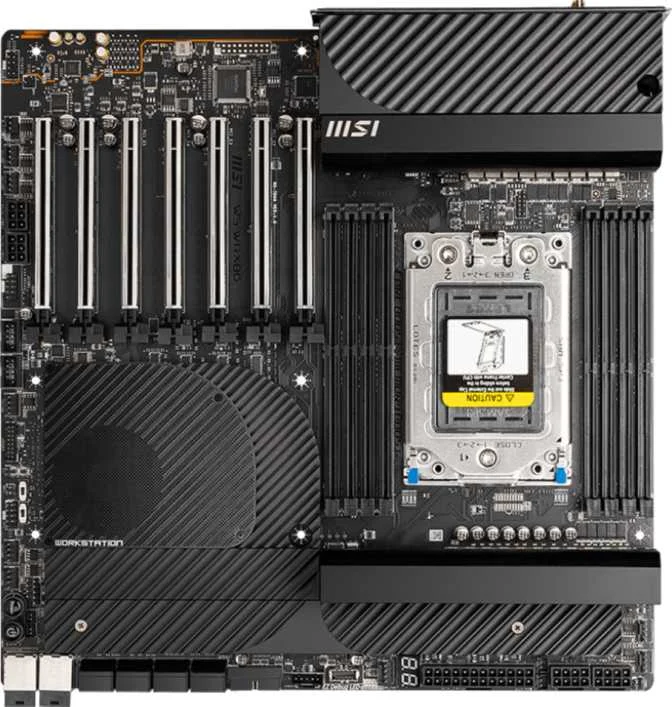

MSI WS WRX80
Motherboard
0100
87
✦
▋
General Info
Form factor
e atx
Release date
20220714
Supports Wi-Fi
✔ Yes
Wi-Fi version
Wi-Fi 6e, wifi 6, wifi 5, wifi 4
Has Bluetooth
✔ Yes
Bluetooth version
5.2
Memory
Maximum memory amount
2000 GB
RAM speed (max)
3200 MHz
Overclocked RAM speed
4400 MHz
Memory slots
8
DDR memory version
4
Memory channels
8
Ports
USB 3.2 Gen 2 ports (USB-A)
8
USB 3.2 Gen 1 ports (USB-A)
0
USB 3.2 Gen 2 ports (USB-C)
1
USB 3.2 Gen 1 ports (USB-C)
0
USB 2.0 ports
0
USB 3.2 Gen 2x2 ports
1
Connectors
USB 3.2 Gen 1 ports (through expansion)
2
USB-C 3.2 Gen 2 ports (through expansion)
1
USB 2.0 ports (through expansion)
4
SATA 3 connectors
8
Fan headers
6
USB 3.0 ports (through expansion)
2
Expansion Slots
PCIe 4.0 x16 slots
7
PCIe 5.0 x16 slots
0
PCIe 3.0 x16 slots
0
PCIe x1 slots
0
PCI slots
0
PCIe 2.0 x16 slots
0
Audio
Signal-to-Noise ratio (DAC)
120 dB
Audio channels
7.1
Has S/PDIF Out port
✔ Yes
Audio connectors
5
Storage
Supports RAID 1
✔ Yes
Supports RAID 10 (1+0)
✔ Yes
Supports RAID 5
✔ Yes
Supports RAID 0
✔ Yes
Supports RAID 0+1
✖ No
Miscellaneous
Thunderbolt ports
0
